Electrical steel (silicon steel sheet) is a soft magnetic alloy containing 0.5 to 4.5%Silicon (Si). Its engineering objective is to maximize magnetic permeability (μ) while minimizing core losses (hysteresis and eddy current losses). The industry categorizes these flat-rolled products into two definitive families: Cold-Rolled Non-Oriented (CRNGO) and Cold-Rolled Grain-Oriented (CRGO).

1. Decoding Global Grading Nomenclature

International alphanumeric codes (IEC / JIS G3108 frameworks) are highly standardized. Taking the standard grade B50A470 as the definitive engineering baseline:

"B" (Prefix): Designates the source mill standard (e.g., Baosteel).

"50" (First Numeric): Represents 100 times the nominal sheet thickness (i.e.,0.50mm). Thinner gauges ($0.35\text{ mm}$ down to $0.20\text{ mm}$) are required for high-frequency applications to shorten eddy current pathways.

"A" (Alpha Character): Explicitly designates a Non-Oriented (CRNGO) microstructure. A "G" or "R" marker indicates a Grain-Oriented (CRGO) structure.

"470" (Trailing Numeric): Represents 100 times the maximum guaranteed core loss value (P_1.5/50). This means the total iron loss does not exceed 4.70W/kg under a 1.5Tesla magnetic flux density at a 50Hz frequency.

2. Microstructural Allocation: CRNGO vs. CRGO

The engineering deployment of electrical steel is governed entirely by the directional behavior of its magnetic domains.

Cold-Rolled Non-Oriented Steel (CRNGO)CRNGO strips possess an isotropic texture where the magnetic properties are uniform in all directions within the sheet plane. Adding Silicon (Si) and Aluminum (Al) increases the matrix electrical resistivity, directly suppressing eddy currents.

Core Function: Satisfies the multi-directional rotational magnetic fields found in rotating machines.

Applications: Electric vehicle (EV) traction motors, industrial alternator stators, household appliance compressors, and micro-motors.

Common Grades: 35A250, 35A300, 50A470, 50A600.

Cold-Rolled Grain-Oriented Steel (CRGO)

CRGO strips utilize a highly directional "Goss texture" perfected via intensive multi-stage cold rolling and high-temperature texture annealing. The magnetic domains are aligned perfectly along the rolling direction, allowing the steel to exhibit elite permeability and ultra-low core loss exclusively along this longitudinal axis.

Core Function: Engineered strictly for static magnetic circuits.

Applications: High-voltage electrical power transformers, distribution transformers, industrial welding reactors, and large toroidal cores.

Common Grades: 23G110, 27G120, 30G130, and high-permeability (Hi-B) variants like 23P095.

3. Critical Shop-Floor Processing Realities

Punching Limitations: Electrical steel strips are delivered with a micro-thin, high-resistance inorganic insulation coating (C-5 classification) on both sides. During high-speed progressive punching of stator/rotor laminations, edge burr heights must be restricted strictly to ＜0.02mm to prevent interlaminar short circuits that trigger thermal runaway.

Stress-Relief Annealing (SRA): Mechanical shear stresses introduced during punch-slitting disrupt the magnetic domain configuration, degrading core loss values. For critical high-efficiency transformer configurations, the punched laminations must undergo stress-relief annealing at approximately 750℃ in a non-oxidizing atmosphere to restore soft magnetic parameters.

Conclusion: Certified Electrical Coils via ALLOWORD

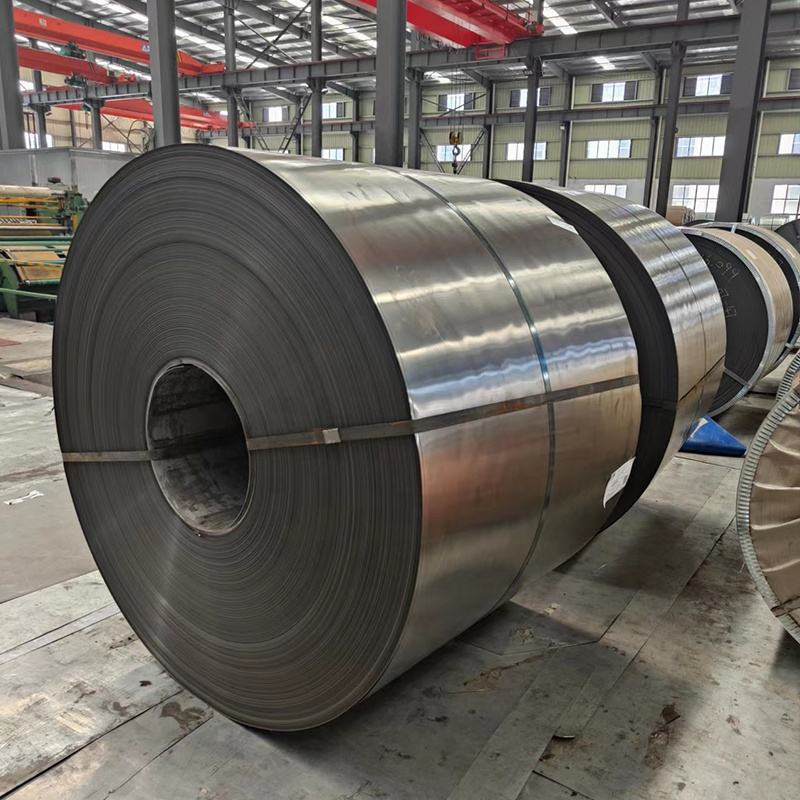

As a high-tier supply partner to international grid solution providers and EV motor manufacturers, ALLOWORD manages extensive, fully traceable allocations of premium CRNGO and CRGO electrical steel coils, precise slit strips, and ultra-thin high-frequency lamination bands. We ensure strict adherence to certified core loss boundaries, complete with authenticated Mill Test Certificates (MTCs).
