In heavy-duty logistics and machinery infrastructure, S700MC (EN 10149-2) is the premier thermomechanically processed (TMCP) steel for maximum weight-reduction.

With a yield strength ≥700MPa, it allows severe down-gauging. However, high-stress fabrication exposes two common bottlenecks: cut-edge splitting during cold bending and premature dynamic fatigue failure. Resolving these challenges requires strict control over inclusion morphology and edge shearing quality.

1. The Metallurgical Mechanism Behind Edge Splitting

During sharp 90° flanging or high-load hole expansion, the cut edges of 4.0mm- 10.mm S700MC plates face immense localized strain. In standard high-strength steels, this stretching triggers sudden micro-tearing along the bent radius.

The hidden culprit is Manganese Sulfide (MnS) inclusions:

The Elongation Defect: During standard hot rolling, conventional MnS particles flatten into elongated ribbons parallel to the rolling direction.

Anisotropy Tearing: These ribbons create severe directional anisotropy. When the sheared edge is stretched perpendicular to the rolling direction, the elongated stringers act as micro-void nucleation sites, accelerating lamellar tearing.

2. Microstructural Solutions: Spherical Inclusions & Fine Grains

ALLOWORD eliminates edge splitting by engineering isotropic mechanical boundaries:

Sulfide Shape Control: Our S700MC undergoes liquid-steel ladle modification via Calcium (Ca) injection. Calcium transforms soft sulfides into highly stable, hard oxy-sulfides. These maintain a perfectly spherical geometry during hot rolling, eliminating anisotropy and boosting the material's hole expansion ratio for crack-free flanging.

Ferritic-Bainitic Matrix: Backed by precise Niobium-Titanium (Nb-Ti) micro-alloying, our TMCP process limits carbon levels to yield an ultra-fine grain ferritic-bainitic matrix (grain size index ≥12). This guarantees superior uniform elongation along sheared margins.

3. Preserving High-Cycle Fatigue Resistance

In commercial chassis and crane boom frameworks, dynamic cyclic loads quickly exploit edge defects. Standard mechanical punching or coarse cutting leaves a rough fracture zone lined with micro-cracks. Under alternating loads, these micro-cracks act as stress concentrators that propagate into sudden fatigue failure.

Protocol: ALLOWORD recommends high-precision laser cutting or optimized mechanical shearing clearances (10% - 15% of plate thickness).

The Benefit: Minimizing the rough fracture zone depth preserves the fine-grain boundaries along the edge, extending the component's high-cycle fatigue limit by up to 35%.

4.Conclusion: Certified Export Consistency via ALLOWORD

To prevent unpredictable press-brake failure and field tracking issues, S700MC demands structural uniformity. ALLOWORD secures premier global allocations of TMCP S700MC steel plates and coils. Our supply chains guarantee strict inclusion cleanliness (S≤0.002%) and spherical morphology, fully backed by EN 10204 3.1 Mill Test Certificates verifying multi-directional charpy V-notch impact values down to -40℃.

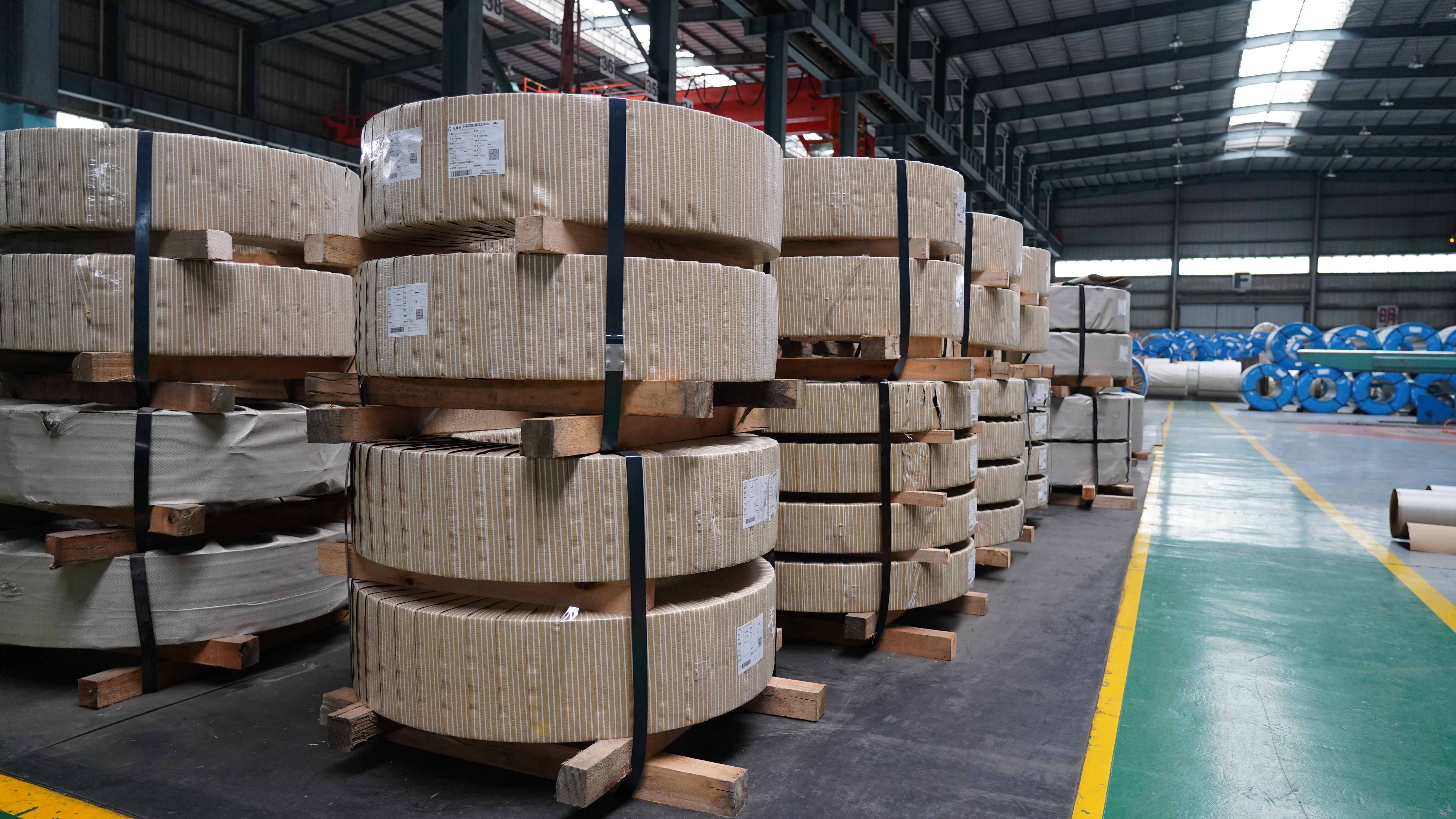

Transport packaging method

For different products, we tailor various packaging options to match different transportation environments, ensuring that each delivery arrives promptly and safely.

Expanded sheet metal processing capabilities

We can offer you more customized processing for your production, such as slitting, leveling, and more. If needed, we can also provide technical support and process services for heat treatment.
