In the fields of high-end cutlery, medical devices, precision springs, and automotive component manufacturing, 6Cr13 martensitic stainless steel is highly favored for its exceptional hardness, wear resistance, and hardenability. However, as downstream end-products evolve toward miniaturization, integration, and high reliability, the market has established near-stringent dimensional precision requirements for upstream raw materials.
When purchasing or processing 6Cr13 precision cold-rolled strip steel, many technical engineers often face a core pain point: how to stably control the thickness tolerance within ±0.01mm after undergoing multi-pass cold rolling and heat treatment.
To overcome this manufacturing bottleneck, relying solely on traditional extensive rolling is no longer sufficient. As a manufacturing enterprise deeply rooted in the R&D and deep processing of special metal materials, this article combines high-precision production equipment with rigorous technological processes to deeply analyze the core secrets behind achieving ultra-high thickness control in 6Cr13 precision cold-rolled strip steel.
I. Core Manufacturing Equipment: The High-Rigidity Hardware Foundation for Achieving ±0.01mm Precision
Compressing the thickness tolerance of high-hardness, high-carbon chromium stainless steels like 6Cr13 down to ±0.01mm (or achieving even higher precision under extreme conditions) places decisive demands on the production hardware—the cold-rolling mill.
In our enterprise's modern production workshop, we primarily rely on world-leading rolling equipment to guarantee micron-level dimensional control:
●20-High Sendzimir Mill (Zg-20 High Mill):
This is the core instrument for producing high-hardness, ultra-thin stainless steels such as 6Cr13. The equipment adopts a dual-range system, an ABB control system, and is equipped with 2 sets of roll systems as well as an advanced AGC (Automatic Gauge Control) system.
Technical Parameter Support: Its finished thickness range reaches 0.02-1.0mm, with a width range of 250-450mm. Leveraging the extremely small backup and work roll diameters of the Sendzimir mill, the rolling pressure distribution is more uniform, effectively overcoming roll elastic deformation and pushing the thickness control precision limit down to the ±0.002mm level. This provides absolute hardware redundancy for 6Cr13 strip steel to stably achieve ±0.01mm tolerance in batch production.
●Full Closed-Loop Tension Control and Tension Leveler System:
During precision cold rolling, tension fluctuation is one of the primary triggers of longitudinal thickness errors. The supporting 23-roll tension leveler adopts a Beizhi design and features an independent tension control device. It not only effectively improves the plate shape of precision strip steel (eliminating sickle curves and wavy edges) but also ensures thickness uniformity of the strip under longitudinal tensile stress through a constant micro-tension state.
II. Critical Technological Processes: Closed-Loop Control from Raw Material Source to Heat Treatment
High precision is not merely "rolled out"; it is achieved through "full-process control." For a material with a strong tendency toward quench hardening like 6Cr13, refined interventions must be implemented across the entire industrial chain:
1. Raw Material Selection and Metallurgical Purity Control
High-precision cold-rolled strip steel places extremely high hereditary demands on raw materials. The 6Cr13 mother coils we utilize are all sourced from premium cold-forging steels and high-quality hot-rolled pickled coils from top domestic steel mills like Baosteel. At the initial entry stage of the mother material, strict screening of chemical composition is conducted:
●Strictly control carbon and chromium contents to ensure uniform distribution of alloy elements.
●Enforce strict controls on non-metallic inclusions, banded structures, and residual elements to prevent local hardness mutations during cold rolling deformation caused by internal material inhomogeneities, which can otherwise trigger thickness springback or out-of-tolerance conditions.
2. Multi-Pass Cold Rolling and AGC Dynamic Compensation
During cold deformation, 6Cr13 is extremely prone to work hardening, causing plasticity to drop rapidly. Therefore, during the actual production of 6Cr13 precision strip steel:
●The total processing rate and individual pass reduction rates must be scientifically designed.
●Real-time linkage is utilized via high-precision X-ray thickness gauges and the AGC system. When the system detects minor fluctuations in rolling force or micron-level deviations in the inlet thickness of the workpiece, the AGC system automatically adjusts the screw-down or hydraulic down-cylinder within milliseconds, dynamically compensating for oil film variations and mill housing elastic deformation to ensure the exit thickness is permanently locked within the $\pm 0.01\text{mm}$ target zone.
3. Organizational Uniformity Assurance via Bright Hydrogen Bell-Type Annealing Furnaces (BAF)
Work hardening induced by cold rolling must be eliminated via intermediate or final annealing to restore material plasticity, preparing it for the next processing pass or meeting final delivery specifications.
●We utilize full-hydrogen bell-type annealing furnaces designed and manufactured by Baoxin (or advanced intermediate annealing furnaces), utilizing up to 99.999% high-purity hydrogen as a protective atmosphere.
●The extremely high thermal conductivity of hydrogen ensures a high degree of uniformity in the internal furnace temperature field (furnace temperature uniformity is required to be controlled within ±5℃).
●Precise annealing technology not only enables 6Cr13 to acquire an ideal spheroidized structure (spheroidization rate guaranteed above 95%) but also effectively prevents surface oxidation and decarburization of the strip steel (surface decarburization layer ＜5μm), preventing out-of-control thickness springback during subsequent skin passing or stamping due to uneven surface microstructure softness and hardness.
II. Product Performance Indicators and Application ScenariosThe 6Cr13 precision cold-rolled strip steel manufactured through the aforementioned rigorous processes not only achieves a breakthrough thickness tolerance within ±0.01mm but also exhibits exceptional mechanical properties and microstructures:
●Mechanical Properties: Possesses high hardness, high wear resistance, and favorable quench-tempering stability, with hardness and tensile strength satisfying various rigorous working conditions.
●Typical Application Objects: Widely applied in high-end cutlery manufacturing (such as surgical blades and industrial shear blades), precision mechanical parts, automotive components (such as wear-resistant shrapnel and bearing retainers), and electronic instruments. Within these application scenarios, high thickness precision of ±0.01mm directly dictates the precision, sealing performance, and service life of terminal assemblies.
Ⅳ.Conclusion and Customized Solutions
In summary, controlling the thickness tolerance of 6Cr13 precision cold-rolled strip steel within ±0.01mm is a systematic engineering feat integrating Sendzimir high-rigidity mill hardware, AGC dynamic feedback control, premium raw material metallurgical purity assurance, and full-hydrogen precision heat treatment.

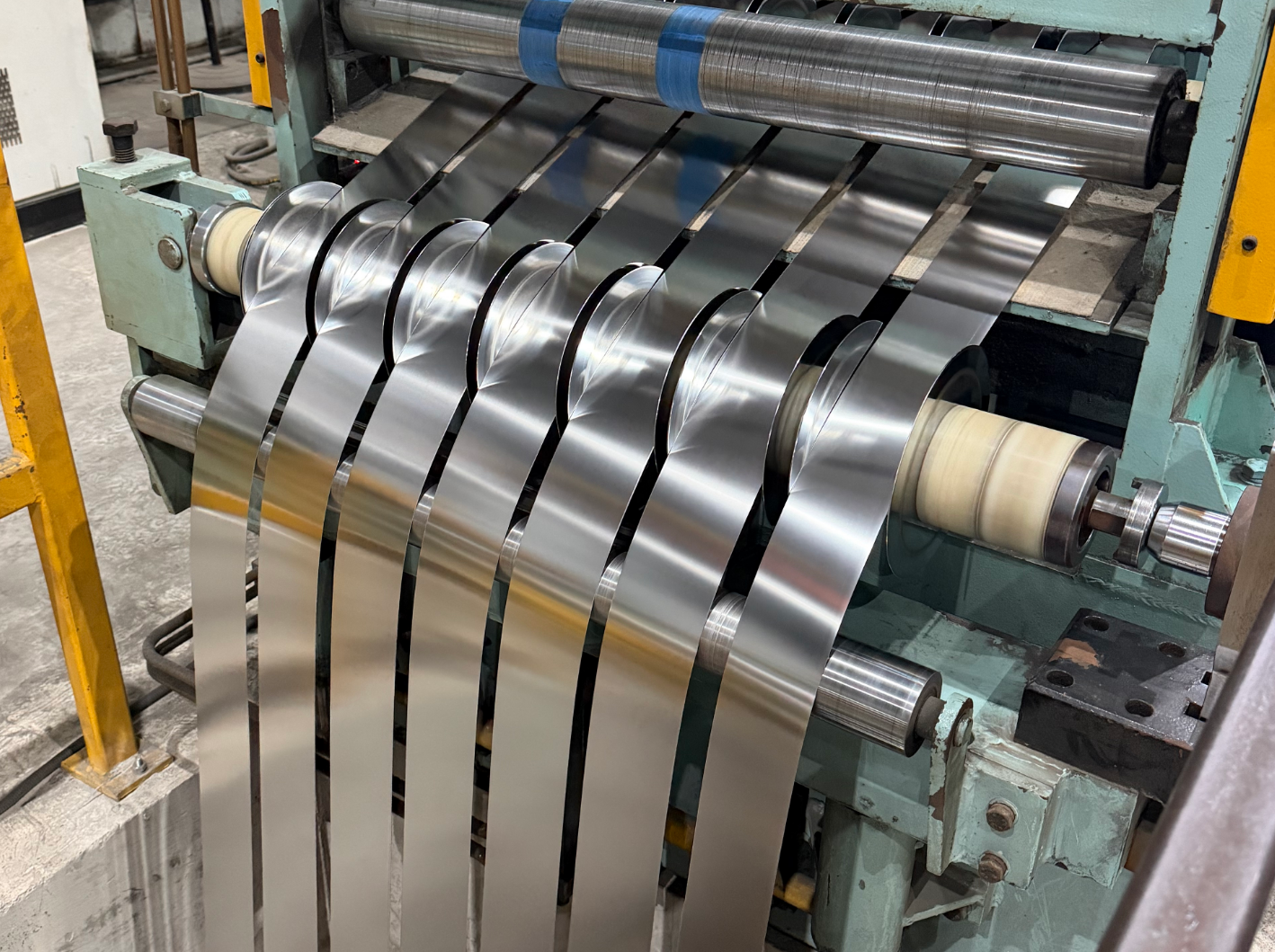

As a professional manufacturing enterprise specializing in special metal materials and deep processing, ALLOWORD possesses a complete set of advanced production lines covering ultra-thin and thick materials (including 20-High Sendzimir mills, full-hydrogen bell-type annealing furnaces, and high-precision slitting equipment). Furthermore, we can provide deep customization services ranging from material selection and structural optimization to comprehensive technical packages tailored to customer-specific technical standards for 6Cr13 or other special stainless and alloy steels (such as specific tolerance ranges, hardness levels, and surface roughness).
If you are looking for an original source manufacturer capable of stably supplying ±0.01mm ultra-high precision, high-performance 6Cr13 precision strip steel, you are welcome to contact our engineering and technical team at any time to obtain detailed product manuals and sample testing support.
