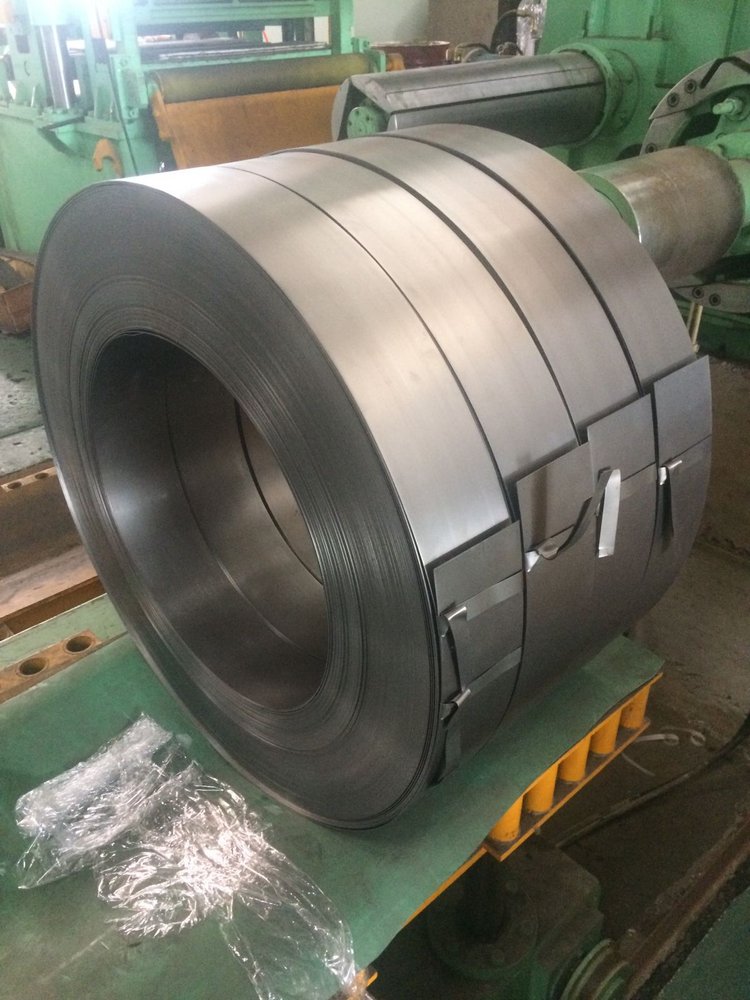

In automotive body manufacturing, exterior panels such as side outer panels, door outer panels, and fenders not only need to exhibit streamlined aesthetics, but also must endure multi-stage, high-deformation stretching and drawing during complex press-forming processes. Such exterior parts place near-demanding requirements on material plasticity, surface cleanliness, and anti-aging properties. Recently, we received a professional inquiry regarding an extra-deep-drawing interstitial-free steel: BSUFD cold-rolled IF steel strip, with a thickness of 0.8mm and a width of approximately 150mm, fully compliant with the JIS G3141 standard, specifically tailored for automotive side outer panels and complex deep-drawn structural components.
To handle this cold-rolled steel order—which demands extraordinary deep-drawing performance, micron-level thickness control, and exterior-grade surface quality—we leveraged our 20-high Sendzimir precision rolling mill and continuous bright heat treatment process to deliver an impeccable manufacturing solution.
I. Decoding Material Genes: JIS G3141 BSUFD Interstitial-Free (IF) Technology and Superior Performance
BSUFD belongs to the extra-deep-drawing Interstitial-Free (IF) cold-rolled steel sheet category under the Japanese Industrial Standard (JIS G3141), serving as a premier material for high-end automotive body exterior panels:
Micro-alloying and Anti-Aging Characteristics: By introducing strong carbon-nitride-forming elements such as titanium (Ti) and niobium (Nb) during smelting, residual interstitial atoms (carbon and nitrogen) in the steel are completely fixed into precipitate phases, leaving virtually no free interstitial atoms in the matrix. This endows the material with a unique anti-aging advantage, meaning its press-forming performance and plasticity will not degrade even after long-term warehouse storage.
Hardcore Mechanical and Ductility Indicators: Its yield strength is controlled at ≤180MPa, tensile strength is no less than 270 MPa, and breaking elongation reaches ≥42%, exhibiting a remarkably stunning plastic forming limit.
Superior Deep-Drawing and Exterior Appearance: Featuring a uniform and fine-grained micro-structure, the material maintains an extremely low work-hardening rate during stamping and stretching, allowing it to easily withstand high-deformation complex drawing without cracking. It is exceptionally well-suited for automotive side outer panels, door outer panels, fenders, and high-end home appliance panels.
II. Precision Breakthrough: Sendzimir Mill and ±0.005mm Thickness Control
Rolling extra-deep-drawing IF steel smoothly down to a thin gauge of 0.8mm while meeting the client's strict thickness tolerance requirement within ±0.01mm poses a massive challenge to dynamic mill rigidity and strip profile regulation. This is precisely the core killer feature of our 20-high Sendzimir precision rolling mill:
Micron-Level Thickness Control: We successfully stabilize the thickness accuracy of the 0.8mm strip within ±0.005mm, comprehensively surpassing the client's rigorous tolerance expectations.S
uperior Strip Profile and Exterior-Grade Roughness: Strip flatness is stably maintained at ≤3 I-units, and surface roughness is optimized to Ra≤0.4μm, establishing a flawless mirror-like foundation for subsequent automotive panel stamping and high-gloss painting.
III. Core Process Safeguards: Mirror-Grade Cleanliness and Zero-Springback Dimensional Control
Automotive side outer panels and exterior components directly dictate overall vehicle aesthetics, placing unique demands on surface cleanliness and stamping dimensional stability:
Residue-Free, Scratch-Free, Corrosion-Free Precision Cleaning Lines: BSUFD requires exterior-grade surface quality. Through the joint manufacturing of multi-stage high-efficiency precision cleaning lines and continuous bright annealing lines, we ensure the strip surface is completely free of residual oils, scratches, and micro-corrosion, perfectly satisfying the rigorous requirements for direct high-end electrocoating and painting after press-forming.
Full Release of Internal Stress to Prevent Springback Deformation: Backed by high-standard stress-relieving annealing lines, internal processing stresses are thoroughly released, effectively preventing springback, warping, or torsional deformation after complex stretching, ensuring dimensional consistency and high-quality assembly precision for mass-produced automotive side panels.
From precise alignment with the JIS G3141 BSUFD standard to the micron-level precision of the Sendzimir mill, and onward to the superior plasticity and exterior-grade cleanliness of the anti-aging IF steel, we continue to escort global high-end automotive side panel and extra-deep-drawn component manufacturers with a flexible 3 to 5-ton minimum order quantity and efficient capacity!
