According GB/T 11352-19
Industrial pure iron
7-day express delivery
Minimum order quantity of 1 ton
Precision machining provided by our own factory
Supporting multiple payment methods: CIF CFR FOB EX-WORK
Multi-port delivery at Shanghai, Ningbo, and Guangzhou
Supporting sample services

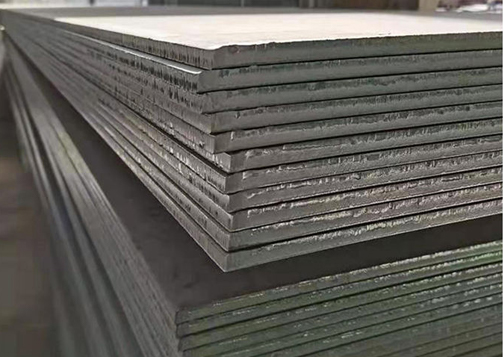

Alloword company can has excellent production team and production technology to provide customers with high quality industrial pure iron steel.The industrial pure iron we produce is widely used in deep drawing and electromagnetic materials. Our production is made in accordance with international standards and can be produced according to customer needs.
Steel grades included in the standard
| Steel grade designation | Name | THICKNESS from _ to in mm | WIDTH from _ to in mm |
|---|---|---|---|
| YT01 | Soft magnetic iron | 0.6-1.6 | 800-1250 |
NOTE: Not all thickness and width combinations are possible.
Chemical composition of symbol standards
| Steel grade | C [%] | Si [%] | Mn [%] | P [%] | S [%] | Cr [%] | Ni [%] | Cu [%] | Mo[%] | Ti[%] |
|---|---|---|---|---|---|---|---|---|---|---|
| YT01 | ≤0.003 | ≤0.01 | ≤0.02 | ≤0.008 | ≤0.004 | ≤0.02 | ≤0.02 | ≤0.02 | — | ≤0.005 |
NOTE: Mass fraction in ladle analysis.
Industrial pure iron is a high-quality steel whose chemical composition is mainly iron. The content of iron is 99.5~99.9%. Industrial pure iron is soft, capricious and has good electromagnetic properties. There are two common specifications, one is used as a deep drawing material, and the other is used as an electromagnetic material.
Application field
Delivery information
