According DIN 17102
Bridge steel
7-day express delivery
Minimum order quantity of 1 ton
Precision machining provided by our own factory
Supporting multiple payment methods: CIF CFR FOB EX-WORK
Multi-port delivery at Shanghai, Ningbo, and Guangzhou
Supporting sample services
Alloword company has a professional production line and production technology.We can provide high quality bridge plate. We can produce and deliver according to the standards required by our customers, based on their location or order specifications. These bridge slabs are commonly used in bridge structural construction.
Steel grades included in the standard
| Steel grade designation | Name | THICKNESS from _ to in mm | WIDTH from _ to in mm |
|---|---|---|---|
| TStE285 | Bridge steel | 5.0-50.0 | 1500-3900 |
NOTE: Not all thickness and width combinations are possible.
Chemical composition of symbol standards
| Steel grade | C [%] | Si [%] | Mn [%] | P [%] | S [%] | Cr [%] | Ni [%] | Cu [%] | Mo[%] | Ti[%] |
|---|---|---|---|---|---|---|---|---|---|---|
| TStE285 | ≤0.18 | ≤0.5 | 0.9~1.5 | ≤0.03 | ≤0.025 | — | — | — | — | — |
NOTE: Mass fraction in ladle analysis.

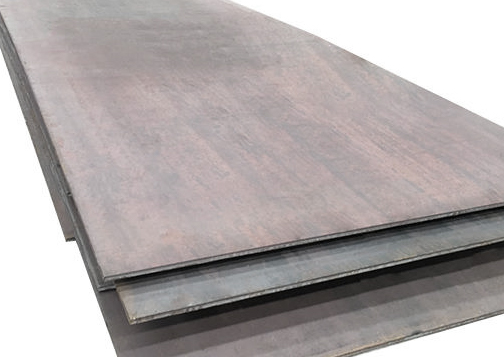

Bridge slab is a special thick steel plate for the manufacture of bridge structural parts. It is made of carbon steel and low alloy steel for bridge construction with special steel grades。
Application field
Delivery information
